The TTV5 Thermal Test Vehicle is engineered for laboratories and development teams that require dependable thermal measurement without the complexity of custom prototypes. Combining a uniform integrated heater with five embedded temperature sensors, the TTV5 enables accurate thermal mapping, faster setup cycles, and highly repeatable test conditions. Its compact packaged design reduces handling risk and shortens the path from concept evaluation to validated results.
Designed for Reliable Thermal Testing with a Small Footprint

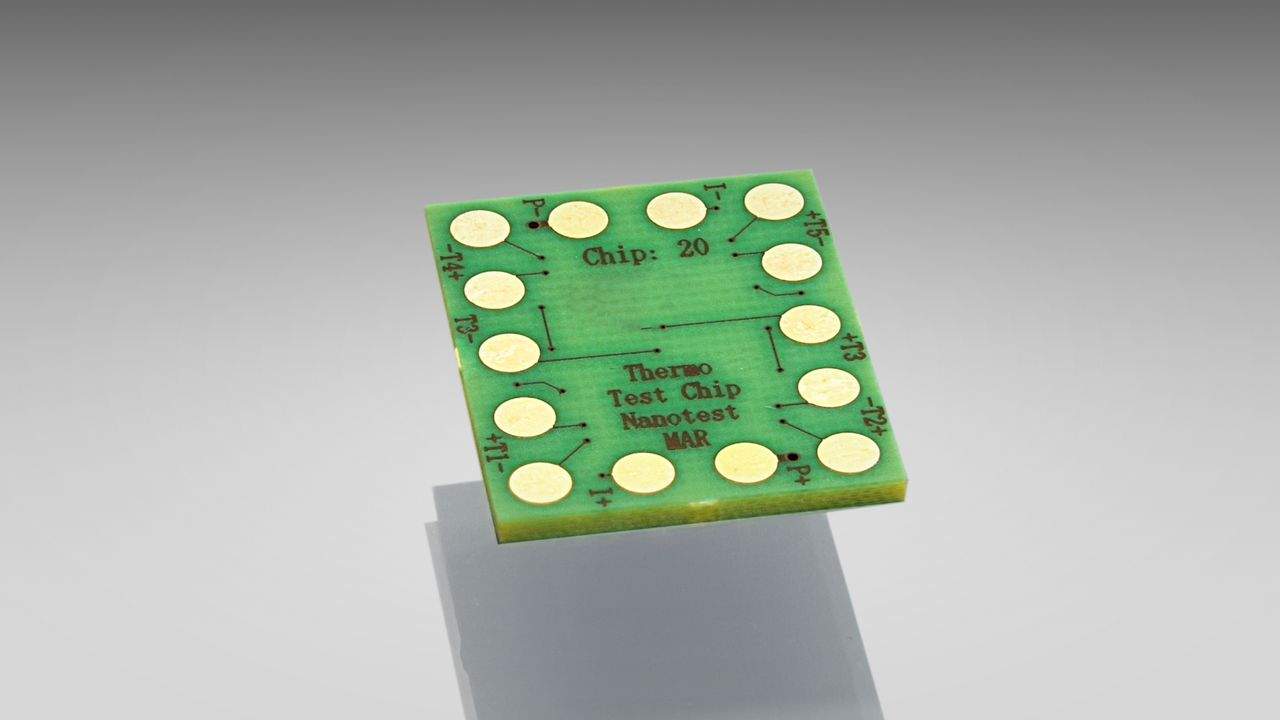

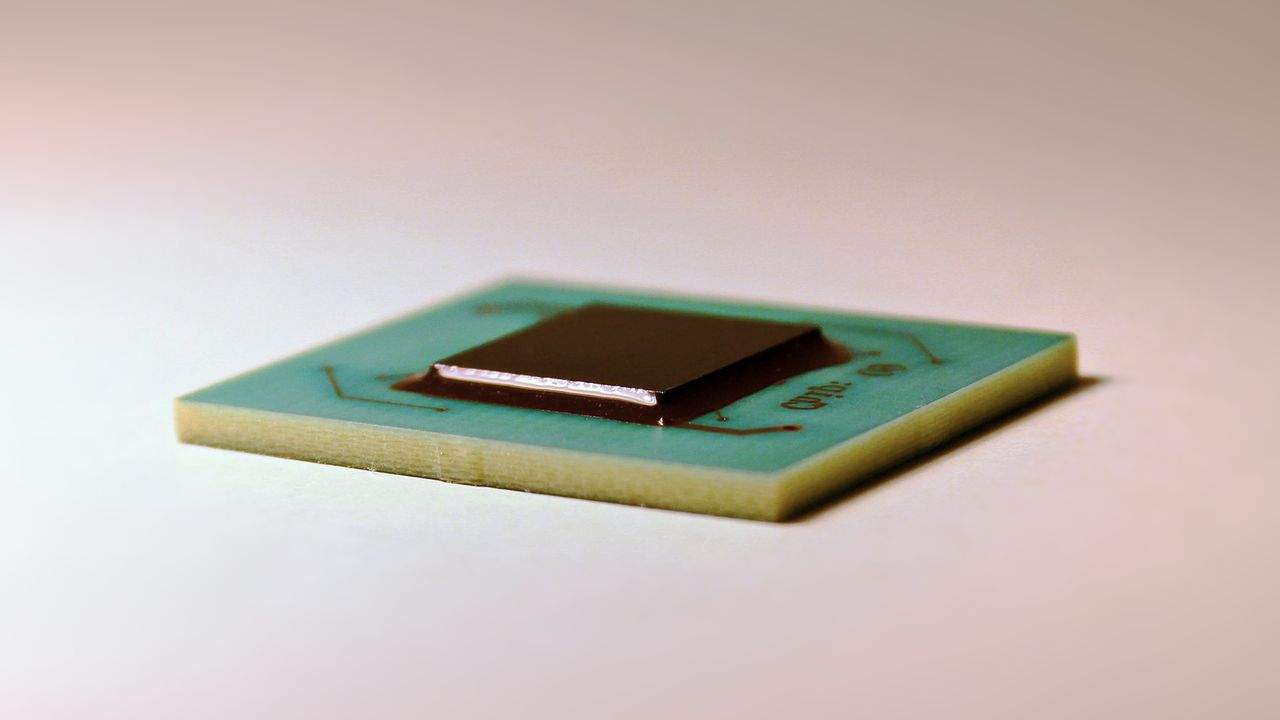

At the core of the TTV5 is a precision full-area resistive heater that delivers controlled thermal loading across the chip surface. Five integrated RTD sensors continuously monitor temperature distribution from center to edge, providing insight into gradients, spreading behavior, and cooling efficiency. Unlike fragile bare-die solutions, the TTV5 uses a robust flip-chip assembly on an FR4 carrier with accessible backside contacts, making installation simpler, handling safer, and measurements more consistent over time.
Performance at a Glance
- Up to 140 W heating power for realistic thermal load simulation
- Five integrated RTD sensors for spatial temperature measurement
- Up to 125°C operating range for standard reliability studies
- Compact 25 × 20 mm package for easy integration
Built for Modern Thermal Engineering Applications

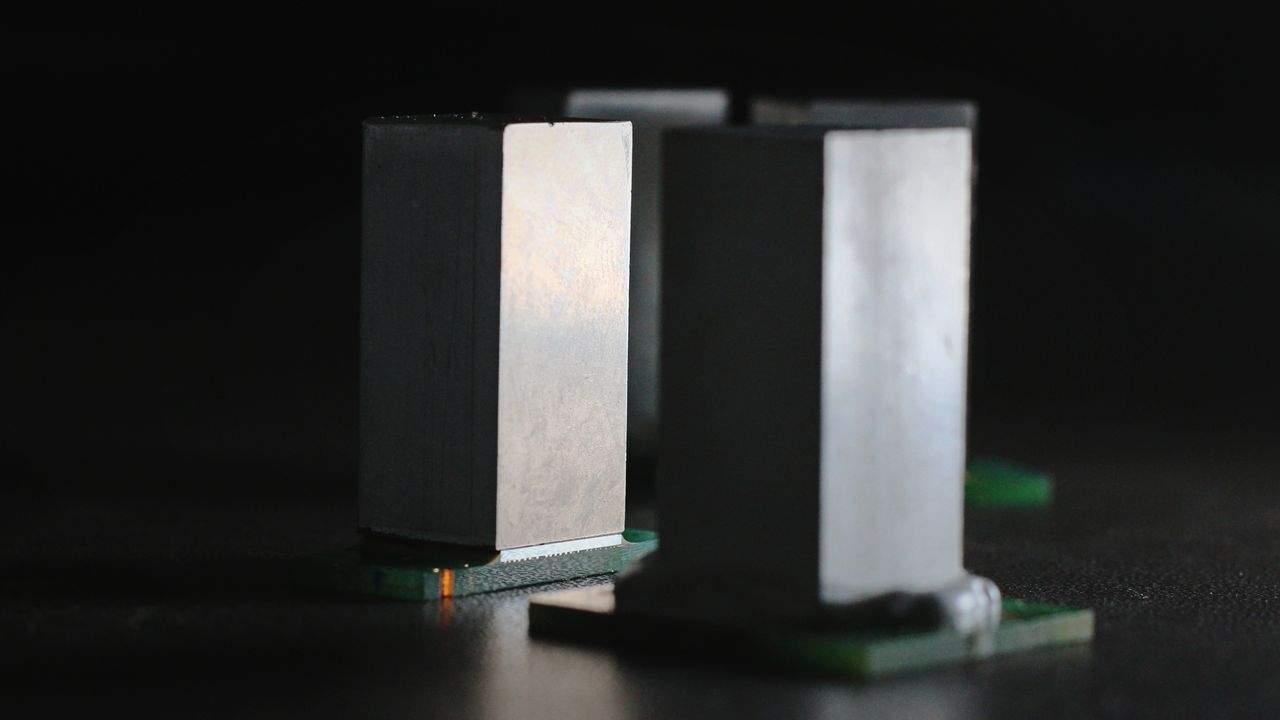

The TTV5 is ideal for evaluating heat sinks, cold plates, vapor chambers, thermal interface materials, package concepts, and custom cooling architectures. It supports R&D teams in semiconductor packaging, power electronics, automotive systems, telecom hardware, academic research environments and any environment where credible thermal data drives design decisions.
Speak with a Thermal Test Specialist
Whether you need a standalone device, a complete measurement setup, or guidance for a custom application, Nanotest can help you define the right solution quickly and confidently. Contact us to discuss your project.
