Custom Thermal Test Vehicles

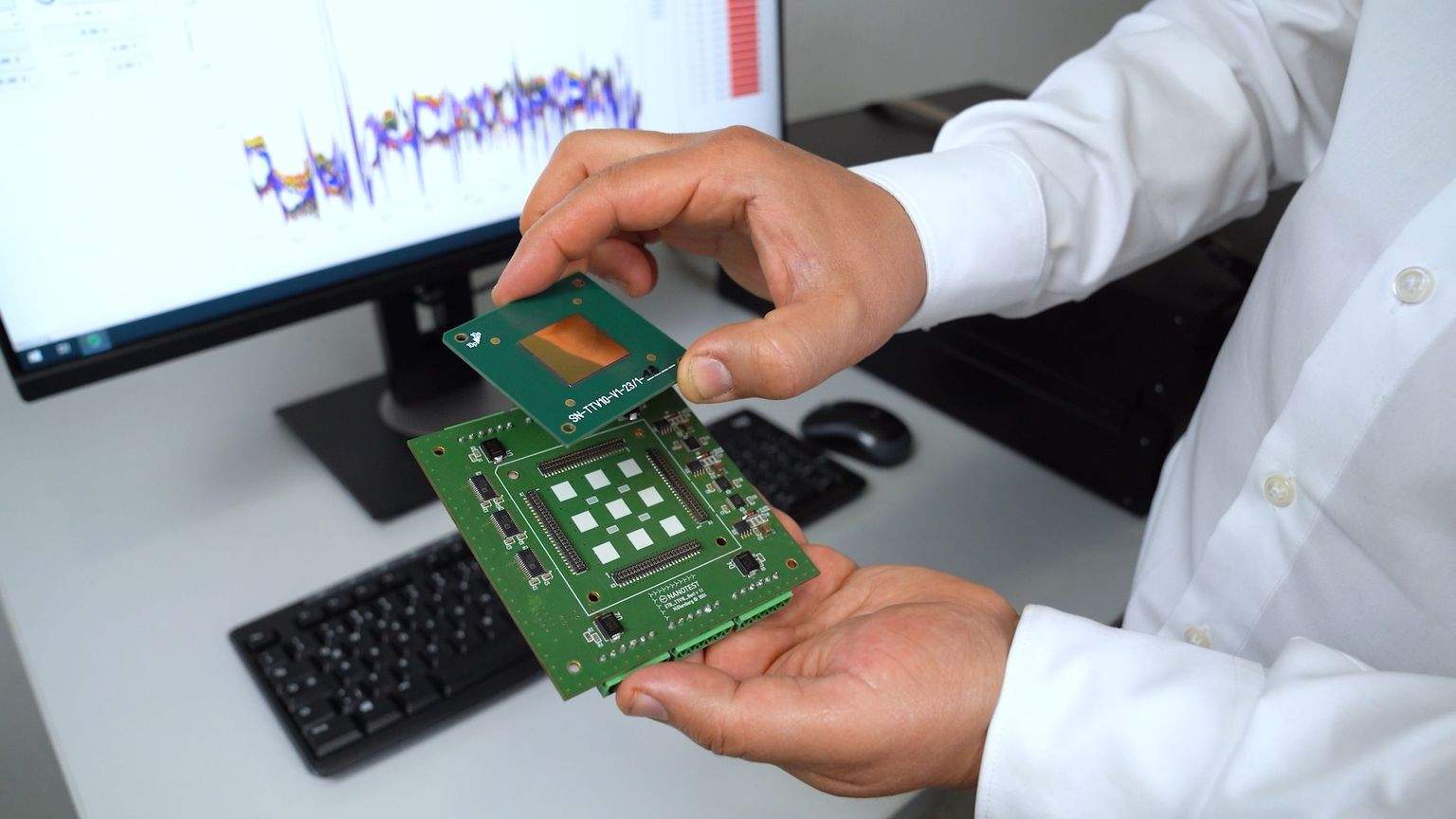

Your Thermal Test Vehicle (TTV) is a custom device used as the centerpiece of your experimental package development setup. It provides integrated heating functionality capable of generating configurable temperature fields across the entire chip, while simultaneously enabling spatially resolved temperature measurement. This allows the thermal behavior of a real package to be simulated under realistic conditions while measuring the actual package core temperatures in situ.
TTV designs can be highly individual and application-specific. Parameters such as die size, heater and temperature sensor layouts, and the overall assembly design can all be tailored to specific requirements. This high degree of flexibility is one of the key reasons why TTVs have become an important tool in advanced packaging development.
What We Provide
We tell the whole story of your TTV: Starting with our in-house designed thermal test chips (TTC), we provide all the design and development steps necessary to end up with a fully functional and calibrated TTV.
With over a decade of experience in countless TTV projects, we are competent in design and development and have established manufacturing and assembly partners at hand that are suited to provide the necessary quality even for highly challenging projects.
We are your partner for:
- TTV Concept and Specification
- TTC Wafer Supply and Dicing

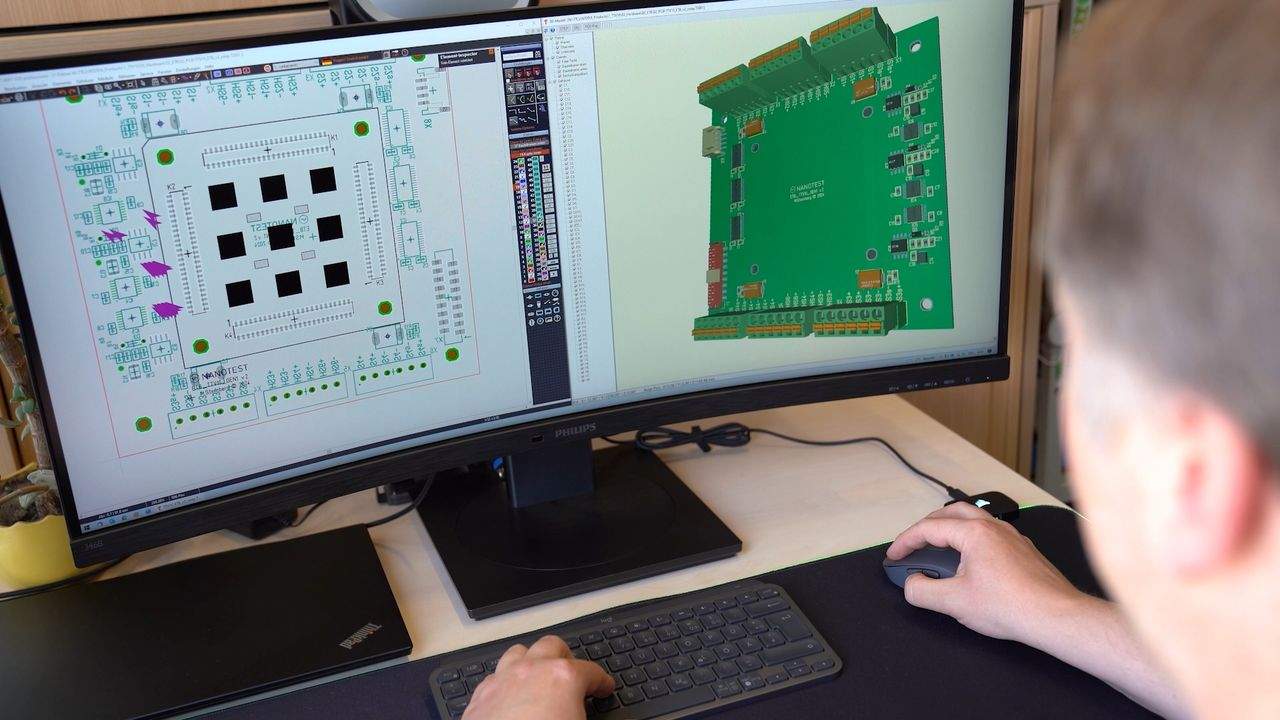

- Substrate / Test Board Design and Manufacturing
- TTV Package Assembly
- Quality and Reliability Assessment
- Calibration and Testing
- Failure Analysis
Get a TTV Designed for Your Application
Talk to our engineers about your thermal challenge and receive a tailored TTV concept.
